    YPG Pressure Spray Dryer For Detergent Powder Pressure Detergent Spray Dryer 200kg/h

    Ask Lasest Price
    Brand Name : shinma
    Certification : ISO9001,ISO14001
    Supply Ability : 20 Set/Sets per Year
    Price : $25,000.00/sets 1-2 sets
    • Product Details
    • Company Profile

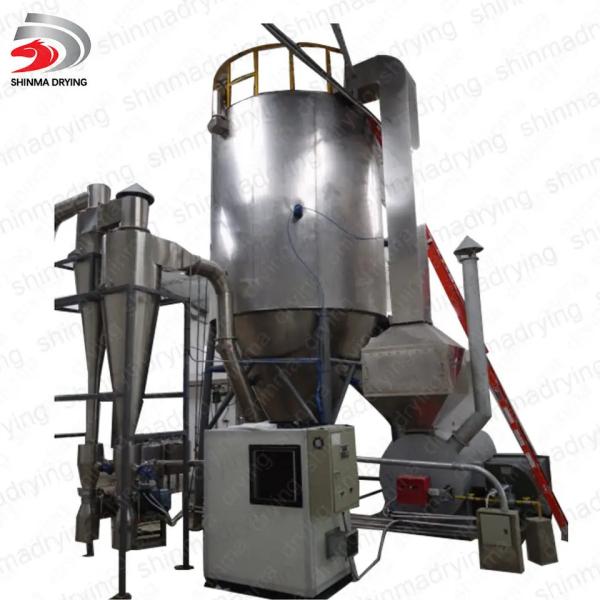

    YPG Pressure Spray Dryer For Detergent Powder Pressure Detergent Spray Dryer 200kg/h

    YPG series detergents powder pressure spray dryer
    Product Overview

    YPG series detergents powder pressure spray dryer
    YPG Pressure Spray Dryer is an apparatus that can finish drying and granulating at the same time. The needed ball granule with certain size and ratio can be gotten in accordance with requirements of process to adjust pressure, flow, and size of atomizing hole.
    The working of this set is as follows: the liquid of raw material is pumped in through diaphragm pump. The liquid of raw material
    be atomized into tiny droplets. Then it gathers with hot air and falls off. Most parts of powder material will be collected
    through the outlet of discharged at the bottom. The wasted air and fine powder will be collected through collector at the bottom
    of cyclone. At the outlet it can also be equipped with two grades of duster. Its ratio of recovery can be above 99%.
    FEATURES AT A GLANCE

    1 .The drying speed is fast. The surfacearea of liquid raw material after being atomized will be increased greatly. 95-98% of
    moisture can be evaporated at a moment. The time of drying needs about ten seconds to several tens of seconds. It is suitable for
    drying heat sensitive material particularly.
    2. The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and
    its quality is good.
    3. The scope of application is wide. According to the characteristics of raw material, it can use hot air to dry and can also use
    cool air to granulate. It has strong adaptability to raw materials.
    4.Small atomizing power
    5.Its operation is simple and stable and convenient and is easy to realize automatic operation.

    PRODUCT SPECIFICATIONS
    No
    Item
    Data(choose as YPG-200)
    1
    moisture evaporation amount
    200kg/h
    2
    operation temputure
    input air≤350℃,output air 80-100℃
    3
    Tower outer diameter / tower net height
    2.8m/15.3m
    4
    Atomization type
    Centrifugal atomization
    5
    Heating source
    electricity+oil hot air furnace
    6
    power(kw)
    15
    7
    pressure(Mpa)
    usually 1-3

    Typical application:

    Chemical industry: organic catalyst, resin, synthetic washing powder, oils, thiamin, dyestuff, intermediate of dyestuff, white carbon black,graphite, ammonium phosphate and so on

    Foodstuff: amino acid and similar substance, flavoring, protein, starch, dairy products, extractive substance from coffee, fish powder,extractive substance from meat and so on

    Pharmaceutical: Chinese patent medicines, agrochemicals, antibiotics, medical drinking agent and so on

    Ceramics:magnesium oxide, kaoline, all kinds of metallic oxide, dolomite and so on

    Granulating through atomizing :all kings of fertilizer, aluminum oxide, ceramics powder, pharmaceutical, heavy metallic super hardness steel, chemical fertilizer, washing powder, Chinese patent medicines and so on.
